Flip Flop Stacker Machine

  • Automatic Flip FLop Stacker Machine

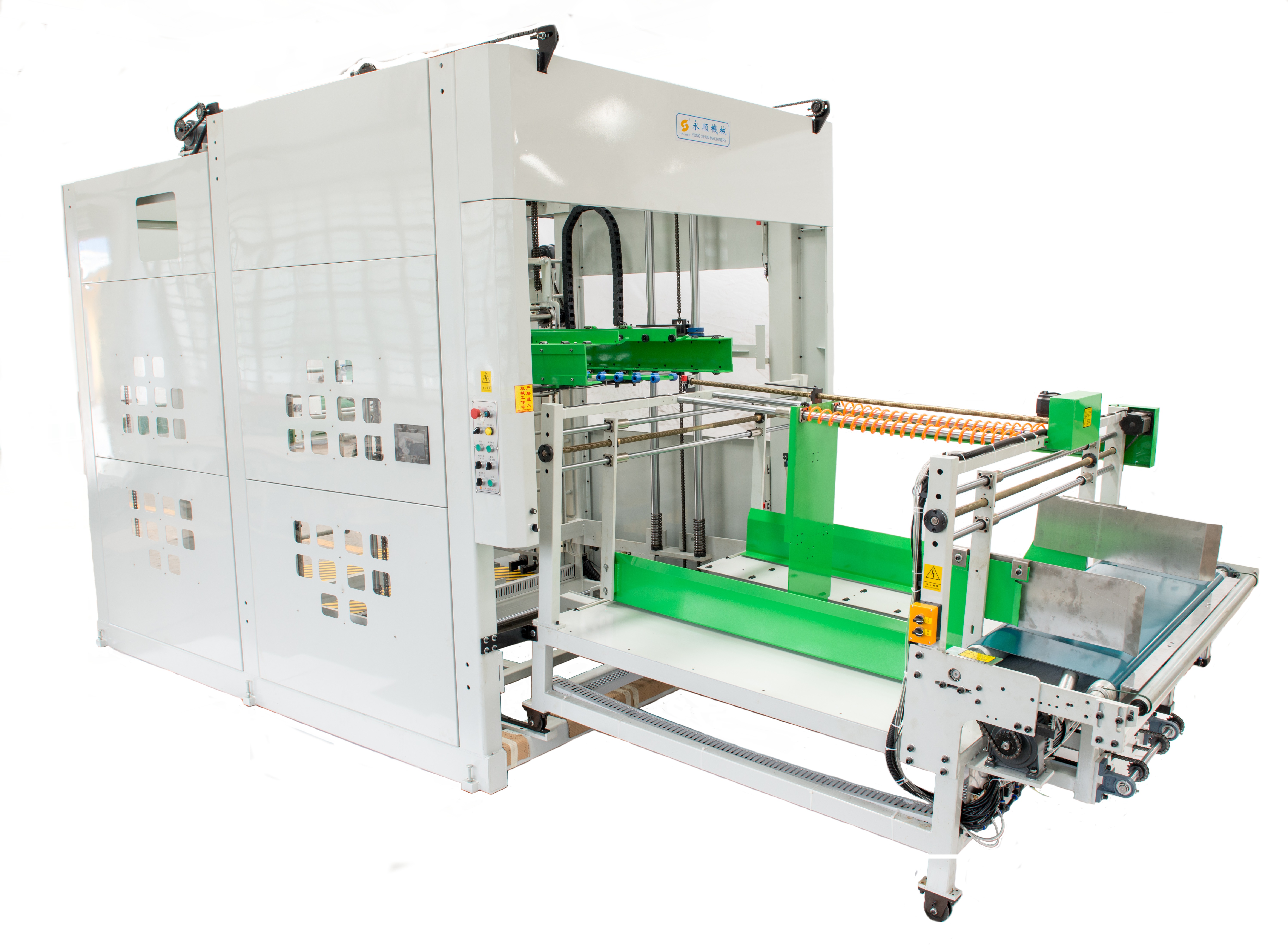

Automatic Flip FLop Stacker Machine

Automatic Flip FLop Stacker Machine

  • Model:YSG-1300 1450 1650
  • Type: Automatic Flip Flop Stacker
  • Origin: Zhaoqing, China
  • Brand: Yongshun Machinery
  • Product description: The automatic Flip Flop Stacker is developed as a supporting product to enhance the efficiency of the paper laminating machine. The technology of this product is already so mature and have gained high
  • INQUIRY

Product Display:



Product Feature:

1. The product can be a complementary(supporting) to the paper laminating machine and it can achieve automatic two-sided paper delivery to avoid bending the paper.

2. To collect paper for each time, all need to do is to just pull the cart, which can save much time.

3. Automatic pushing-paper device is equipped in the machine. Each cart of paper can be collected when the machine is still working.

4. Intelligence user interface is equipped to enable the operating and testing much easier.



AUTOMATIC CONTROL SYSTEM:

PLC control system is used, which is of simple structure and reliable performance

Automatic indication of normal operation&breakdown signals, automatic emergency stop.

Frequency convertor is used, which is power-economic.

The stacking of the two sides of paper is controlled by the frequency servo morto


Specification:

Specification

Model

YS-1300

YS-1450

YS-1650

Max paperboard size(mm)

1300*1300

1450*1450

1650*1650

Min paperboard size(mm)

450*450

450*450

450*450

Operating Speed

6 times/min

6 times/min

6 times/min

Exterior dimension(L*W*H)(m)

5.6*2.2*2.9

5.6*2.4*2.9

5.6*2.6*2.9

Total Weight(KG)

3500

3800

4000

Total Power(kw)

10

10

12
